rib lath/expanded metal lath/rib lath mesh/stucco mesh/metal lath/metal lath sheets/galvanized metal mesh lath

HE BEI SHANG SHUN WIRE MESH PRODUCTS CO.,LTD .

rib lath/expanded metal lath/rib lath mesh/stucco mesh/metal lath/metal lath sheets/galvanized metal mesh lath

  • 1
  • 2

Brand Name : SS

Place of Origin : CHINA

MOQ : 10 pcs

Price : US $6-10 / Pieces

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000 pcs/week

Delivery Time : 10-15days after confirming the order

Packaging Details : 500pcs/pallet or according to customer's requirement.

material : galvanized

thickness : 0.3mm - 0.5mm

Rib Distance : 100mm, 150mm,75mm

Width x length : 610 x 2440 mm

application : construction,building

Reinforced spacing : 150mm

certificated : SGS

sample : free

weight : 0.4-0.8kgs/m2

hole size : 16*11mm, 7*11mm

Contact Now

rib lath/expanded metal lath/rib lath mesh/stucco mesh/metal lathe/metal lath sheets/galvanized metal mesh lath


Materials: Hot-dip galvanized sheet, stainless steel sheet, etc.
Used For: Widely used as a plaster backing on ceilings, walls and stud partitions. Rib Lath is also ideal for refurbishing damaged or aged masonry walls when a key for rendering is not certain due to disintegration or softening of the wall face.

5 Rib 8 Opening
Thickness(mm)Rib Distance(mm)Weight (KG)Width X length(mm)
0.301501.31610 X 2440
0.351501.53610 X 2440
0.401501.75610 X 2440
0.451501.96610 X 2440
0.51502.17610 X 2440

9 Rib 4 Opening
Thickness(mm)Rib Distance(mm)Weight (KG)Width X length(mm)
0.30751.89610 X 2440
0.35752.28610 X 2440
0.40752.53610 X 2440
0.45752.84610 X 2440
0.5753.15610 X 2440
7 Rib 8 Opening
Thickness(mm)Rib Distance(mm)Weight (KG)Width X length(mm)
0.301001.79610 X 2440
0.351002.09610 X 2440
0.401002.38610 X 2440
0.451002.68610 X 2440
0.51002.98610 X 2440

High rib lath

Because its meshes and U patterns,it has better antistress capability and forming flexibility than normal metal lath. This product has excellent engineering quality,construction security and widely used in tunnels bridges,valve basement systerms,sewage systerms, subways,retaining walls,nuclear power plants,shipyards,water poois and marine engineering works and high rise building projects and non-regular or bending pattern etc. as concrete permanent assembly-free formwork.

Application:


1).Construction formwork mesh has very good engineering quality and construction security;


2).Construction formwork mesh as the concrete permanent assembly
free sheet is much convenient for engineering design and processing;


3).Construction formwork mesh is widely used in tunnels,bridges and valve system and so on
to make the process of construction much more fast and stable.

Material thickness/mmSw×Lw/mmRib height/mmRib distance/mmWeight/kg/m2Width/mm
0.3012×851001.2610
0.3512×851001.4610
0.4012×851001.6610
0.3012×881001.2610
0.3512×881001.4610
0.4012×881001.6610
0.303.5×134601.27610
0.353.5×134601.49610
0.403.5×134601.70610
0.303.5×134751.27750
0.353.5×134751.49750
0.403.5×134751.70750
0.3520×98751.00610
0.4020×98751.13610
0.4520×98751.27610
0.30161181500.88610

Packing & delivery time

Packaging & Shipping

500pcs or 600pcs or 750pcs per pallet, pallet with plastic film and steel belt.

Also could do as customers' requirment.


Product Tags:

plain expanded metal sheet



flat expanded metal mesh


China rib lath/expanded metal lath/rib lath mesh/stucco mesh/metal lath/metal lath sheets/galvanized metal mesh lath factory

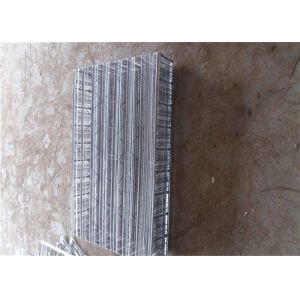

rib lath/expanded metal lath/rib lath mesh/stucco mesh/metal lath/metal lath sheets/galvanized metal mesh lath Images
